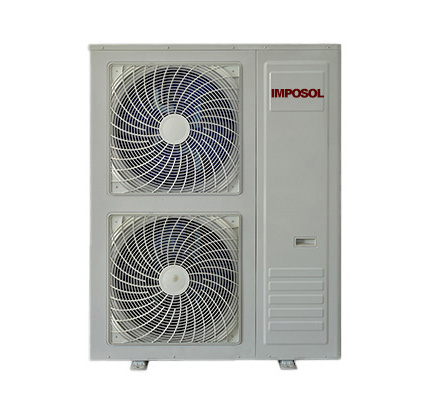

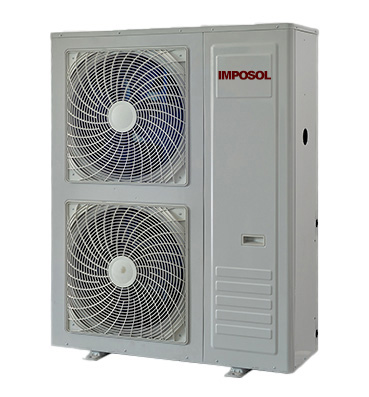

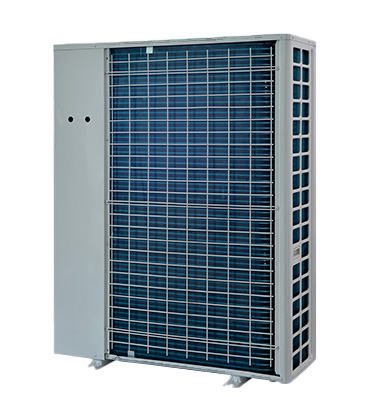

| Model | WHP-060HC - 20KW |
| Power Supply - Refrigerant | 380-415V/3PH/ 50Hz - R410A |
| Heating Capacity ( KW ) - A | 20 |
| Rated Input Power ( KW ) - A | 5.5 |
| COP ( W/W ) - A | 3.64 |
| Heating Capacity ( KW ) - B | 15 |
| Rated Input Power ( KW ) - B | 5.76 |
| COP ( W/W ) - B | 2.60 |
| Cooling Capacity ( KW ) - C | 18 |
| Rated Input Power ( KW ) - C | 6.1 |
| EER ( W/W ) - C | 2.95 |
| Max. Input Power ( KW ) | 8.0 |
| Max. Input Current ( A ) | 12.0 |
| Compressor | Mitsubishi EVI Technology Twin Rotary |
| Fan | DC inverter brushless fans |
| Fan Quantity ( Pcs ) | 2 |
| Fan Airflow ( m3/h ) | 7000 |
| Fan Rated Power ( W ) | 200 |
| Heat exchanger | High efficiency plate type heat exchanger |
| WaterSide Pressure Drop ( Kpa ) | 55 |
| Inlet/Outlet Pipe Size ( mm ) | DN25 |
| Min. Water Flow ( m3/H ) | >3.1 |
| Noise ( dB(A) ) | ≤61 |
| Heating Water Temp. ℃ | 20 ~ 60℃ |
| Cooling Water Temp. ℃ | 5 ~ 20 ℃ |
| Operating Ambient Temp. ℃ | -35°C~45℃ |
| Unit Dimension ( mm ) | 1100*400*1410 |
| Weight ( KG ) | 130/138 |
| Performance Condition - A ： Ambient temp. (DB/WB): 7°C/6°C, Water temp. (In/Out): 40°C/ 45°C; | |
| Performance Condition - B ： Ambient temp. (DB/WB): -12°C/-14°C, Water temp. (Out): 41°C | |
| Performance Condition - C： Ambient temp. (DB/WB): 35°C/24°C, Water temp. (In/Out): 12°C/7°C. | |
