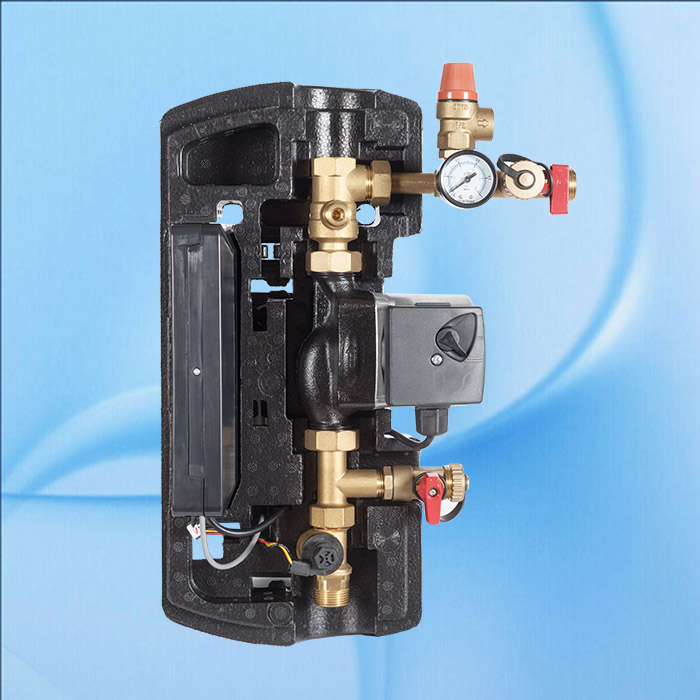

INTRODUCE :

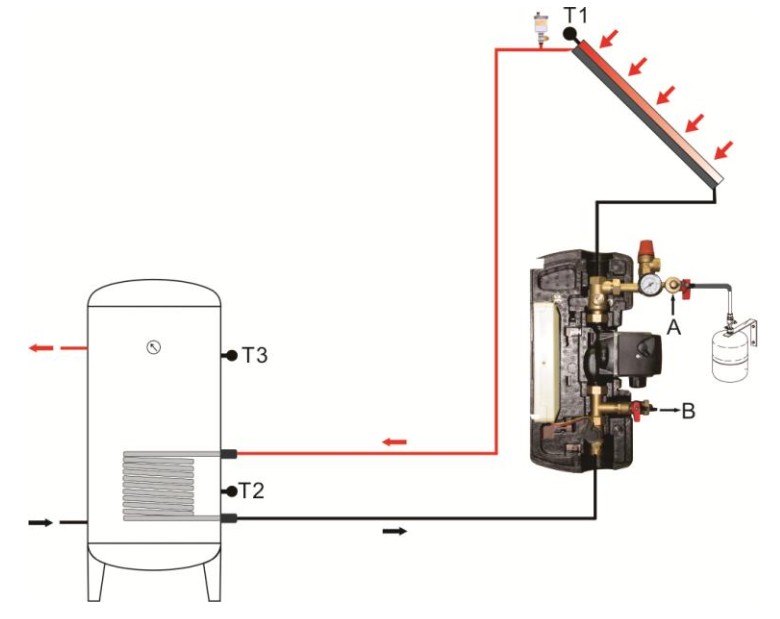

Application Capacity :

• Max.number of collectors:1

• Max.number of storage tanks:1

• Max.number of relays:2

• Max.number of sensors:3

• Max.number of application system:1




MAIN TECHNICAL DATES :

• Diamension:400mm*200mm*145mm

• Installation:  wall mountingalso suitable for mounting into patch panels

• Power  supply:200V-240V  AC  or  100V-130V  AC50-60Hz.  .

• Power  consumption:  < 3W

• Accuracy of temperature measuring: ± 2oC

• Range of collector temperature measuring: -10 ~200oC

• Range of tank temperature measuring: 0 ~110oC

• Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .

• Inputs: 3 sensors

• Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)

• NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)

• Outputs:2 relays for circulation pumps or 3-way electromagnetic valve

• Ambient temperature:-10oC ~ 50oC.

• Water proof grade: IP40.

MAIN FUNCTIONS :

• Timing  heating

• Temperature  difference  control  1*ΔT

• Collector  emergency  shutdown

• Collector  cooling  function

• Collector  low  temperature  protection

• Collector  frost  protection

• Tank  re-cooling  function

• Celsius  and  Fahrenheit  temperature  switch

• Maximum  temperature  of  tank ( max.number:1 )

• Anti-Legionella  function

• Temperature  controlled  hot  water  circulation  pump

• RPM  speed  controlling(1*semiconductor)

• Thermal  energy  measuring

• Pump  interval  functions.

• High  temperature  by-pass  function

• Manual  Control(  for  2  outputs:P1H1)

• Password  setting

• Recovery  to  factory  setting

• Holiday  fucntion

• Manual  Heating

• Temperature  query  function

• Memory  Protection

• Screen  protection

• Trouble  shooting

• Trouble  protection

• Trouble  checking
