1.Operating principle:

Senior household water heating systems, it is common balcony hanging solar energy, solar energy is part of the balcony wall split solar water heating system, water tank placed in the balcony on the balcony outside the collector to absorb solar radiation into heat energy, so that the water tank inner temperature gradually rises.

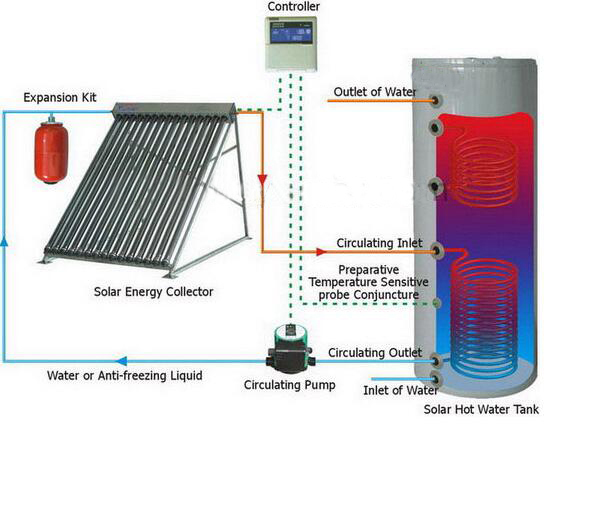

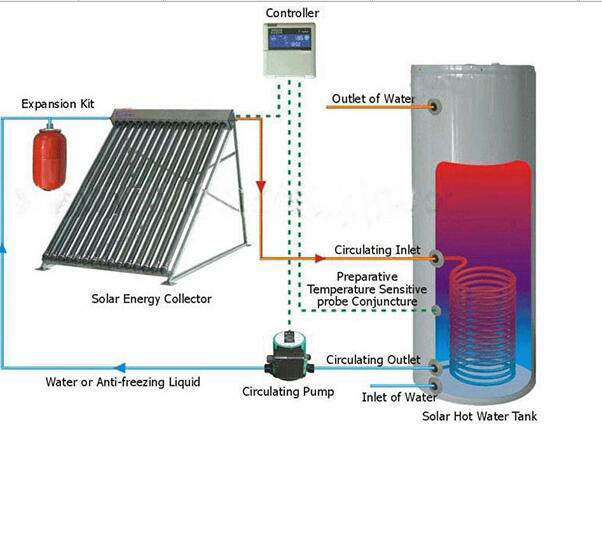

2.Schematic diagram:

3.System type:

Flat-plate collector centralized household heat storage, superconducting heat pipe collector centralized household heat storage, U-tube collector centralized household heat storage.

4.System configuration:

Flat plate/ heat pipe / U-pipecollector collector system, pressurized hot water storage tank / jacketed tank / coil tank, circulating pumps, solenoid valves, control systems, piping systems, auxiliary heat source system.

5.System application：

It can be used in villas, high-rise apartments, multi-storey apartment for heating and hot water supply.

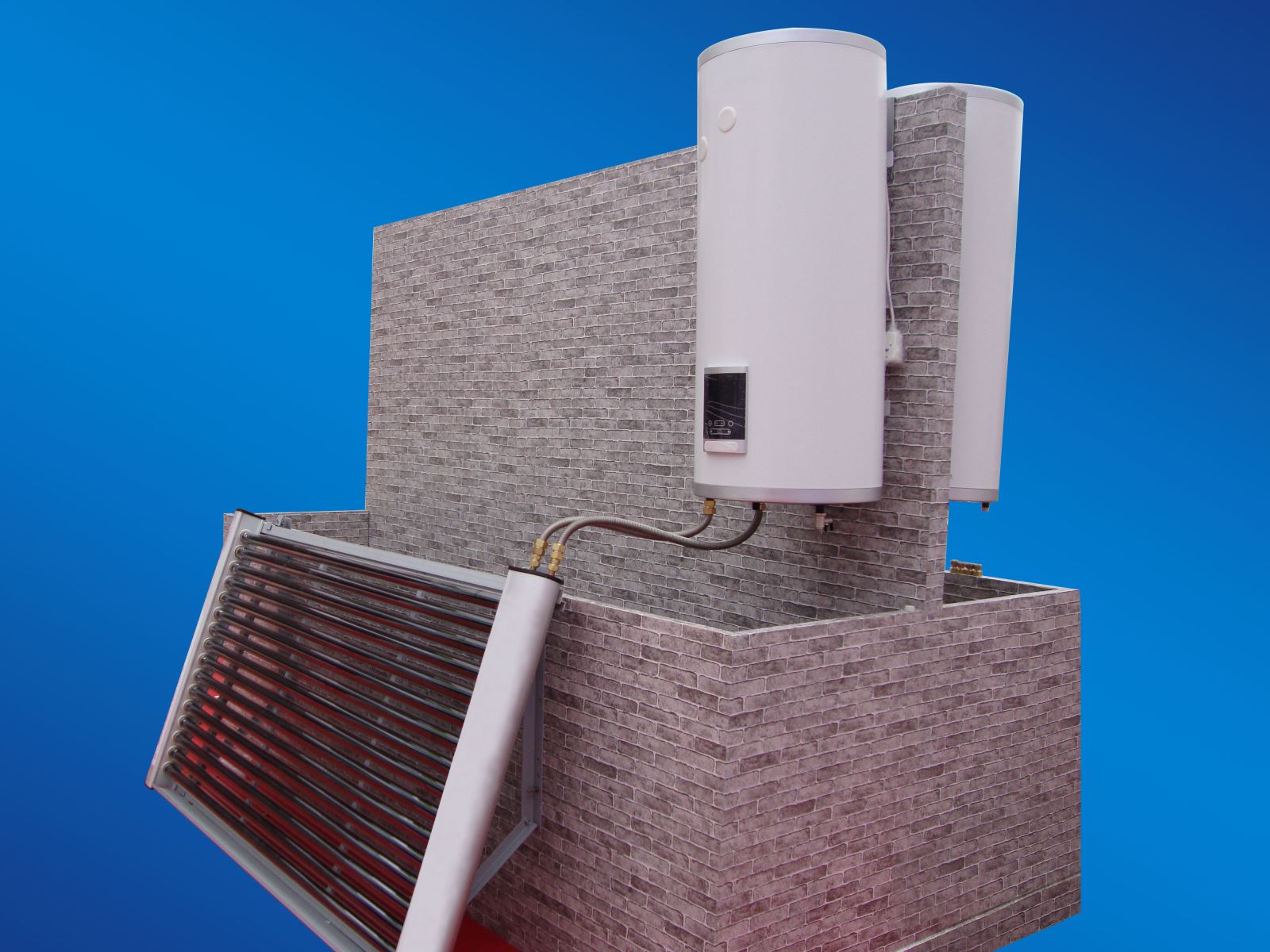

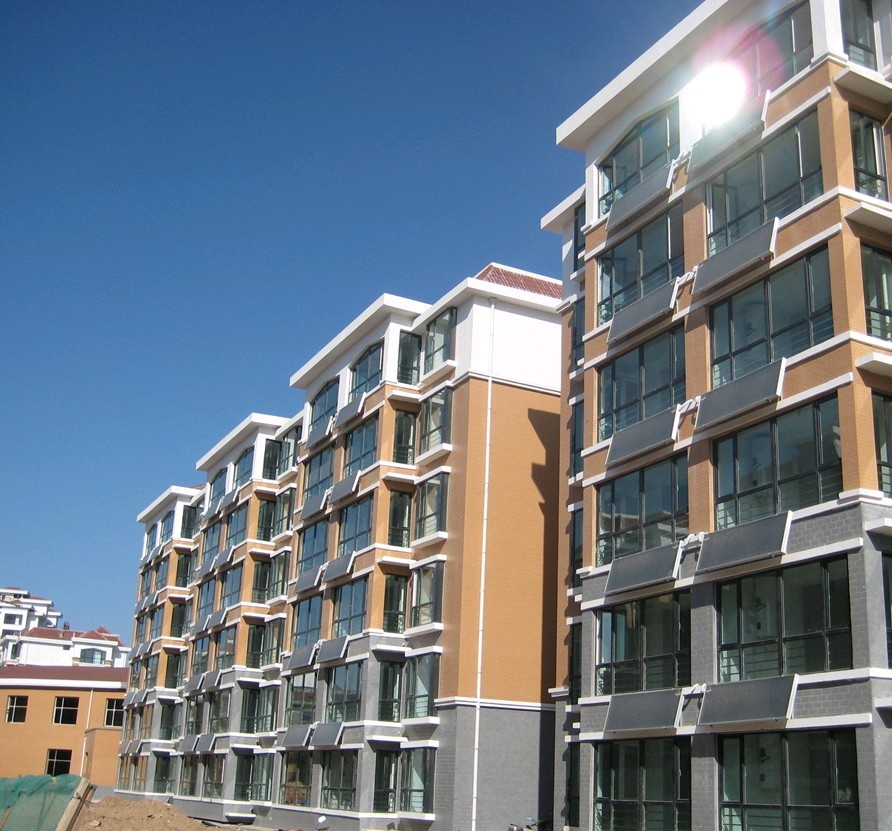

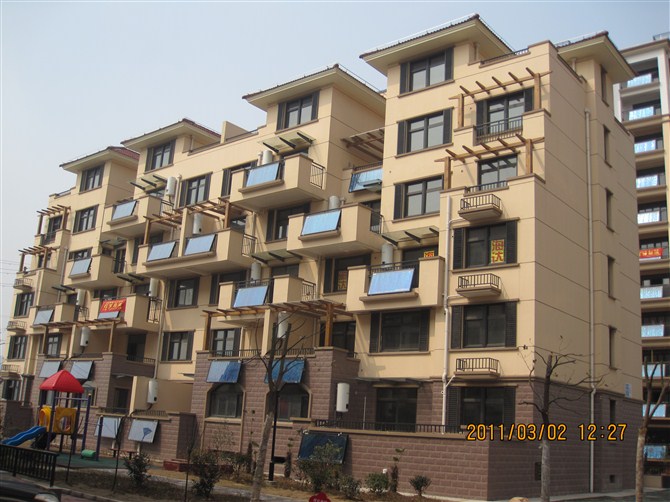

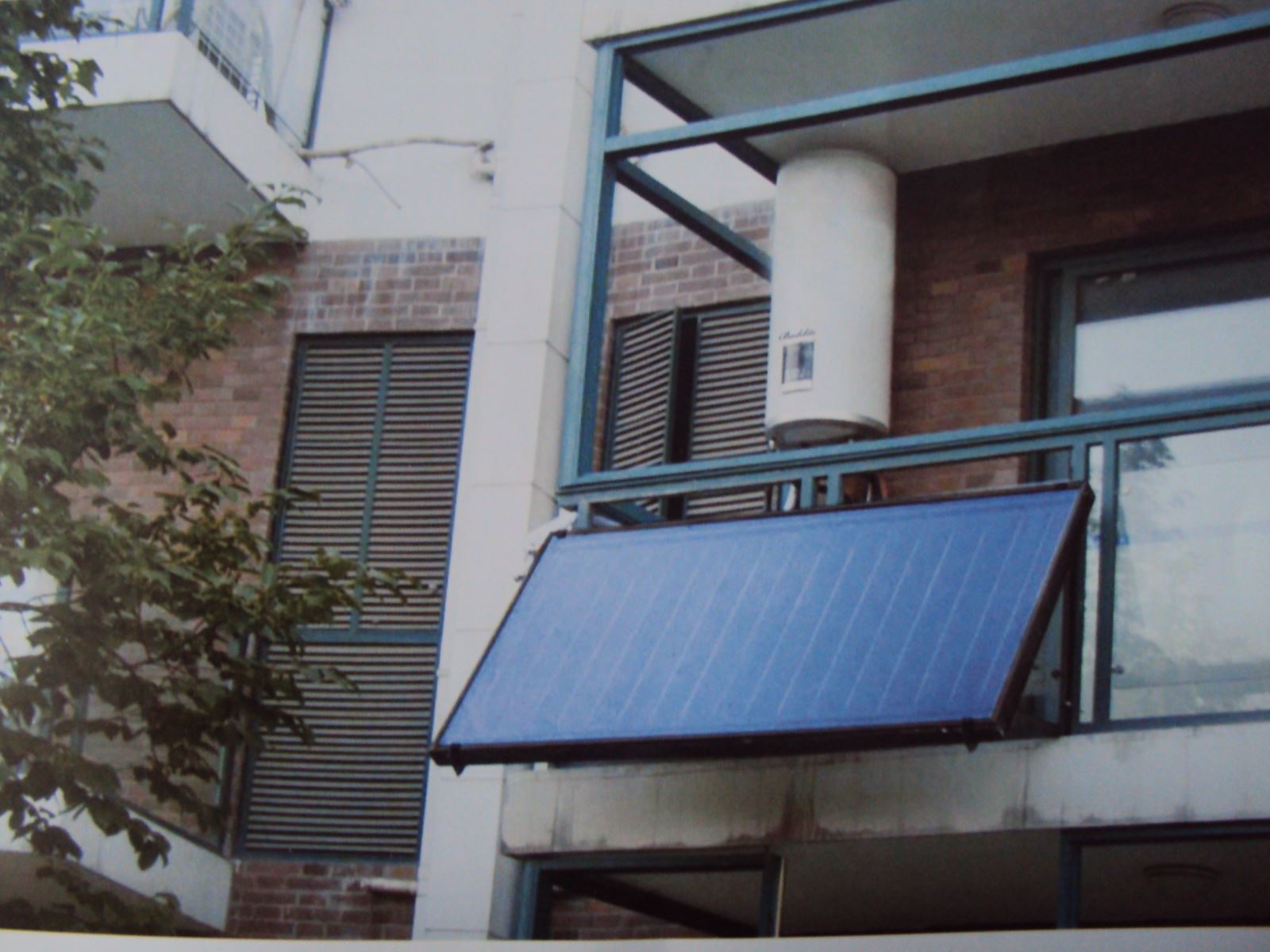

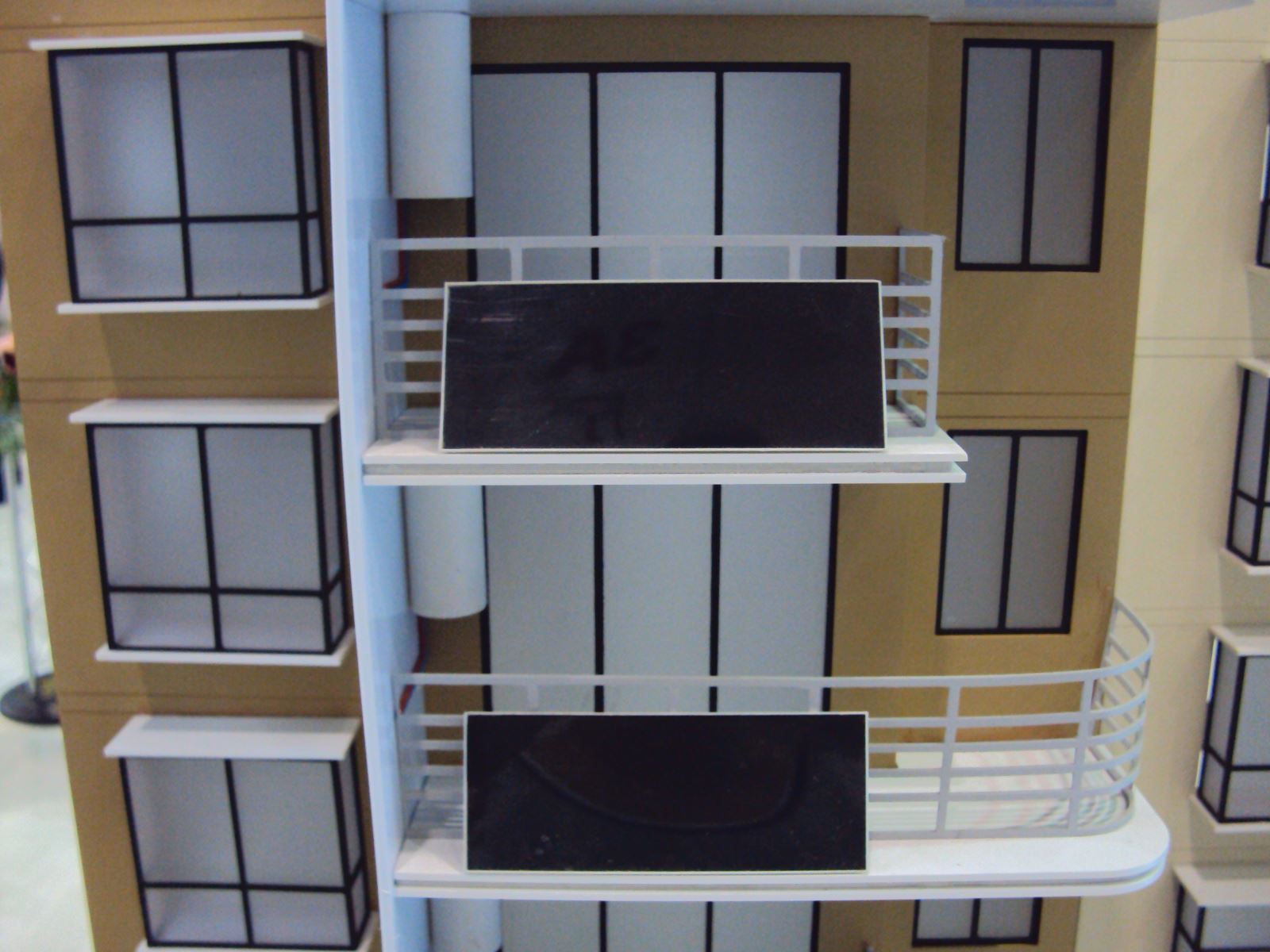

6.Photos:
