Technical Specifications

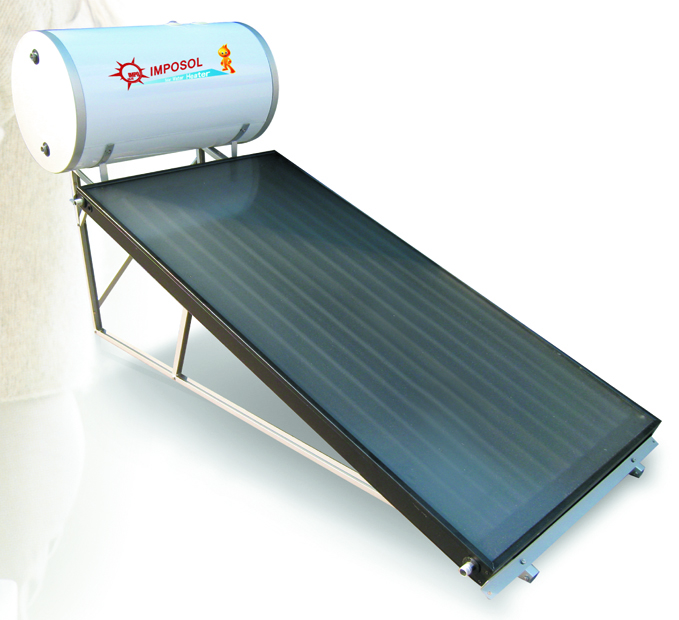

Flat Plate Solar Collector Part :

• Dimensions : 2000*1060 ( 1560 )*80 mm , Gross area 2 ( 3 ) m2, Absorber area 1.8 ( 2.7 ) m2 .

• Core material : 22mm header copper pipe with 10mm branch copper pipe - 0.6mm thickness , aluminum heat absorption plate wth black chrome coating .

• Cover glass material : Low iron tempered glass 3.2mm . Transmittance 91%, EPDM+metal sealed

• Frame material : Aluminum alloy 1.0mm

• Insulation material : Glass wool ad PE foam ,35mm thickness

• Back sheet material : galvanized plate 0.3mm

• Working ( Testing ) pressure : 600kpa ( 800kpa )

Solar Water Tank And Frame Support Part :

• Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .

• Inner Tank : SUS304-2B food-grade stainless steel - 1.5mm thickness with jacketed heat exchanger tank SUS 304  good grade stainless steel -1.0mm thickness  ,laser welding technology .


• Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .

• Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet .

• M8 Stainless steel SUS 304 bolts and nuts .

• Silicone seal ring and dust ring

• Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent

• Pressure&temperature valve

• Safe valve for jacketed heat exchanger tank

• Magnesium anode rod

• Pressure relief valve with check valve

• Thermal circulation connection pipe with insulation

 Optional Accessories :

• Electrical heater

• Solar Controller

• Freeze Protection Valve

• Vacuum breaker valve
